Agility A1 Robotic Arm based on the OpenArm – Open-Source Humanoid Robot Arm
With this product, you earn 6500 loyalty points.
The Agility A1 Robotic Arm is offered in 24V and 48V motor versions, providing flexibility for various application needs.

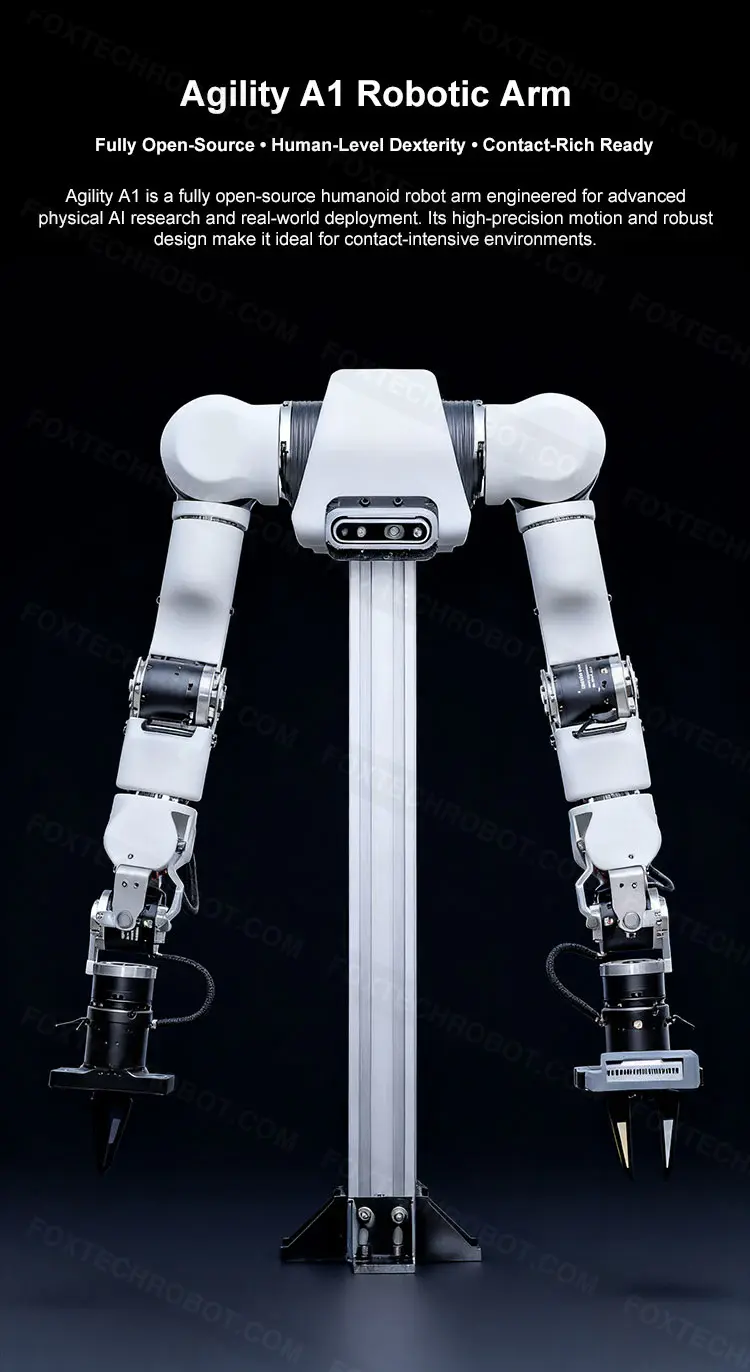

Agility A1 is a fully open-source humanoid robot arm designed for advanced physical-AI research and real-world deployment.
Fully open-source from hardware design to software stack — including mechanical CAD files, PCB schematics, firmware source code, and PC control software. This greatly reduces users' development barriers and costs.

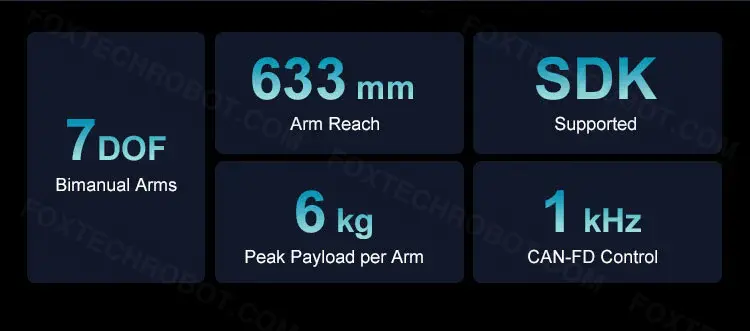

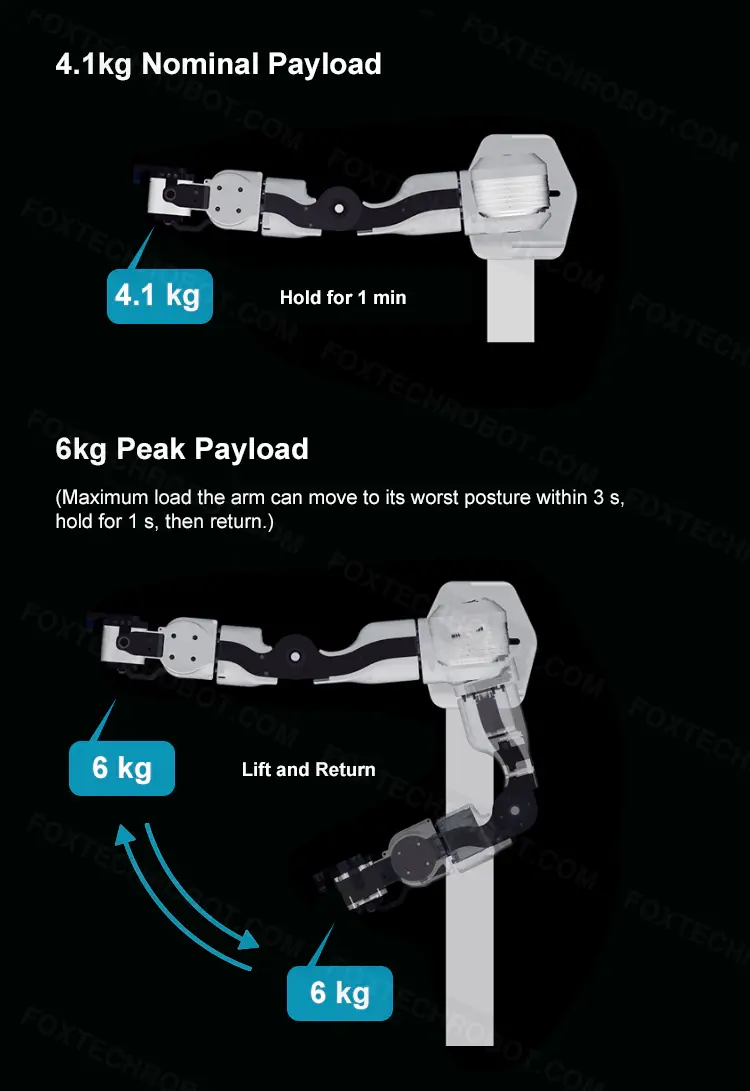

Each arm offers 7 degrees of freedom, 633 mm reach, 5.5 kg weight, and up to 6 kg peak payload, with high-speed 1 kHz CAN-FD control for precise, responsive motion.

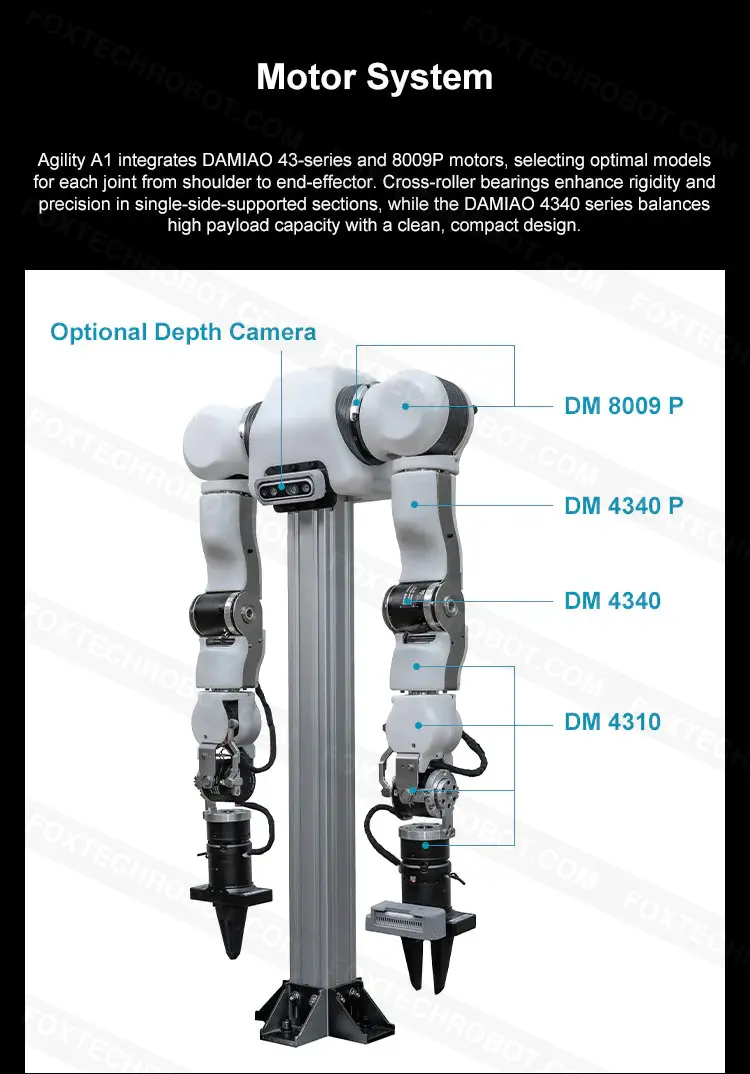

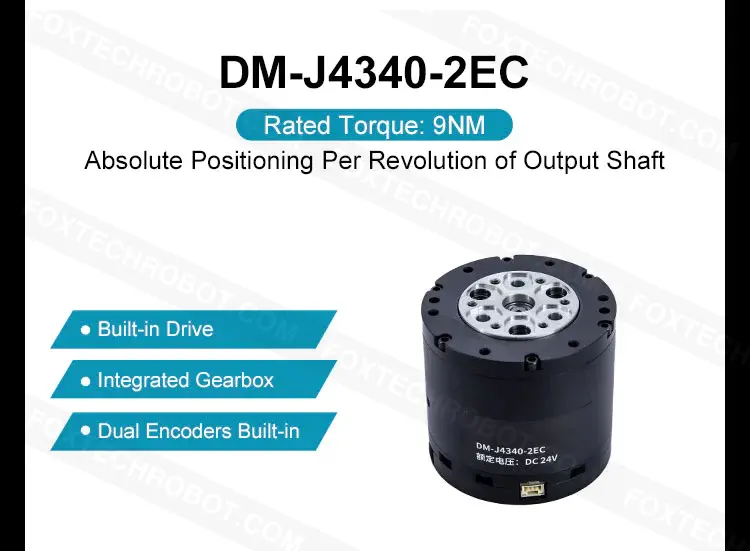

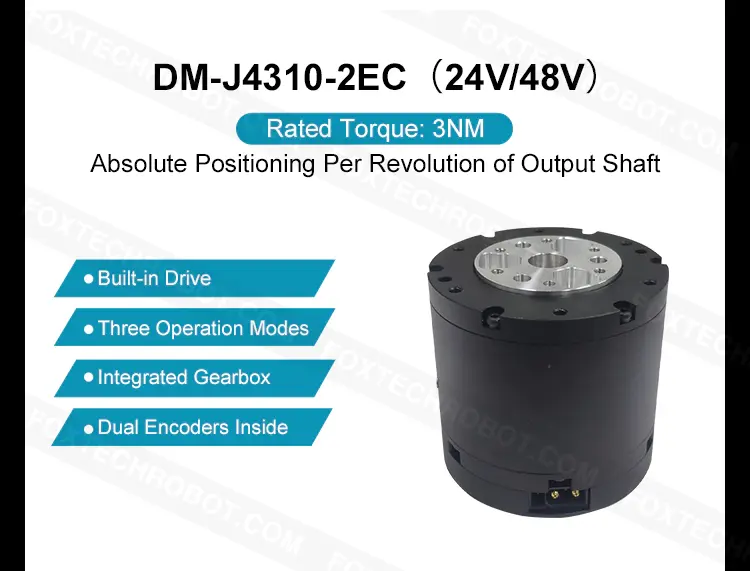

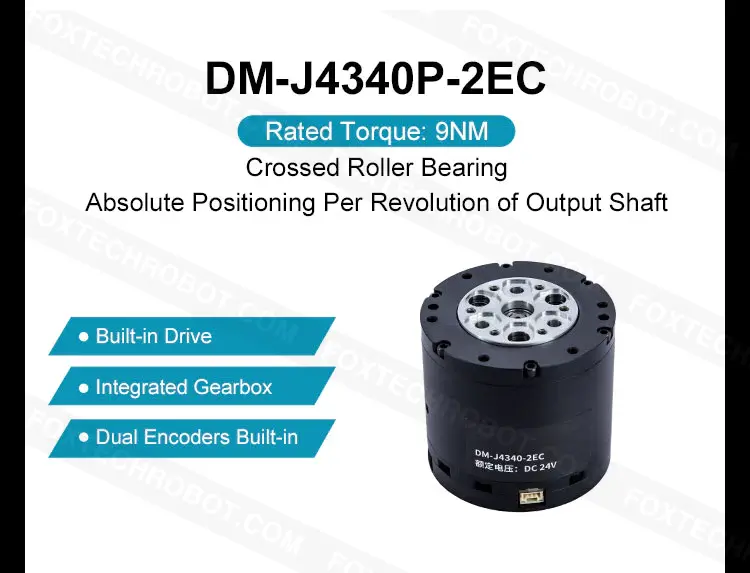

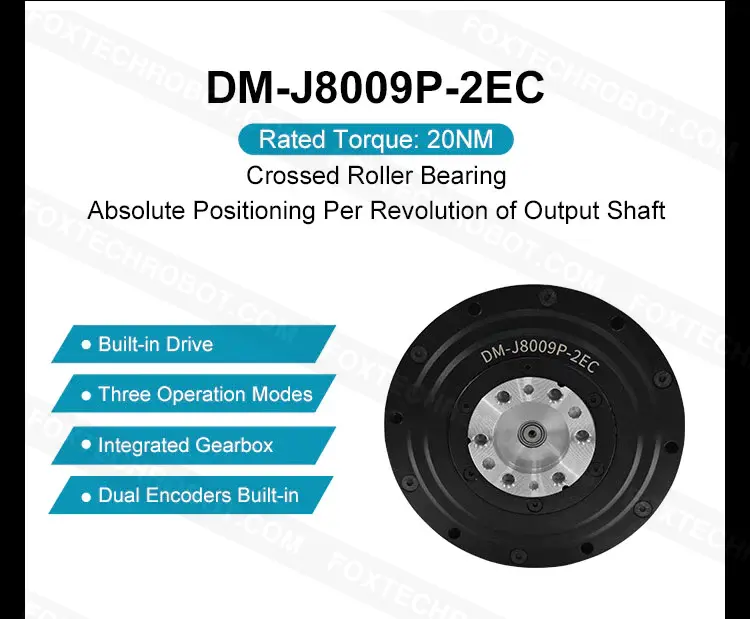

The motor system combines DAMIAO 43-series and 8009P motors, with cross-roller bearings for rigidity and precision, while the DAMIAO 4340 series delivers high payload capacity in a clean, compact form.
Complete CAD models, firmware, control code, and simulation tools are openly available, enabling rapid customization and development.

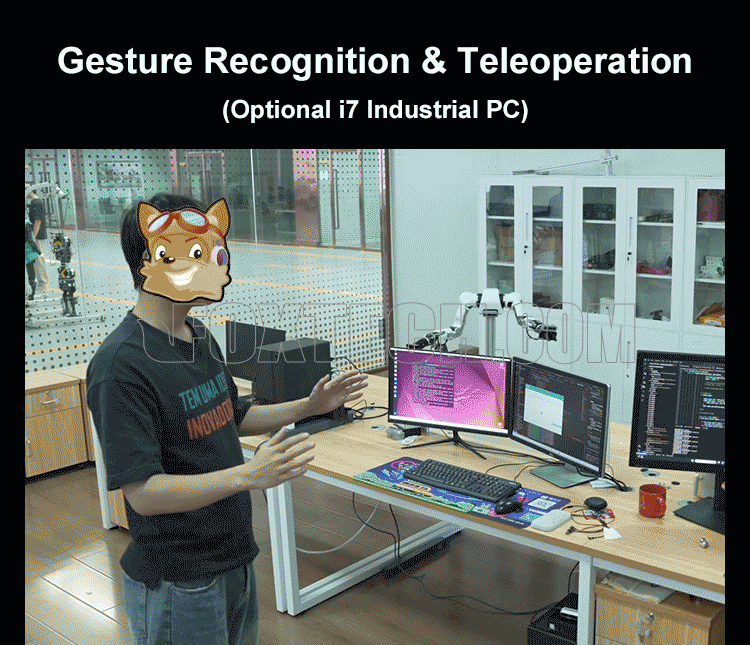

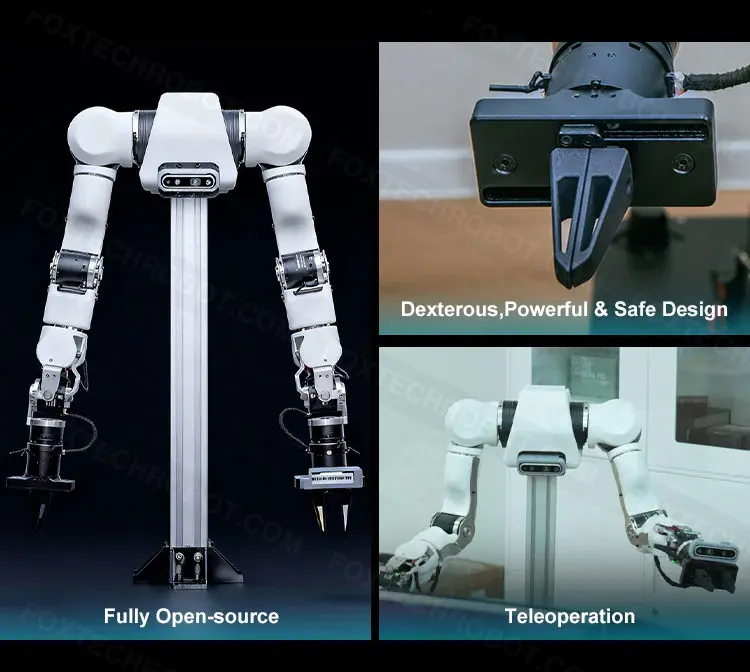

With smooth teleoperation, real-time gravity compensation, and compliant, backdrivable joints, Agility A1 provides dexterous, powerful, and safe interaction for contact-intensive environments.
(Note: Designed Based on the OpenArm Open-Source Platform)
Your Purchase Includes:
1x Agility A1 Robotic Arm (Dual Robotic arms with grippers, aluminum profile)
(Depth camera is optional)
